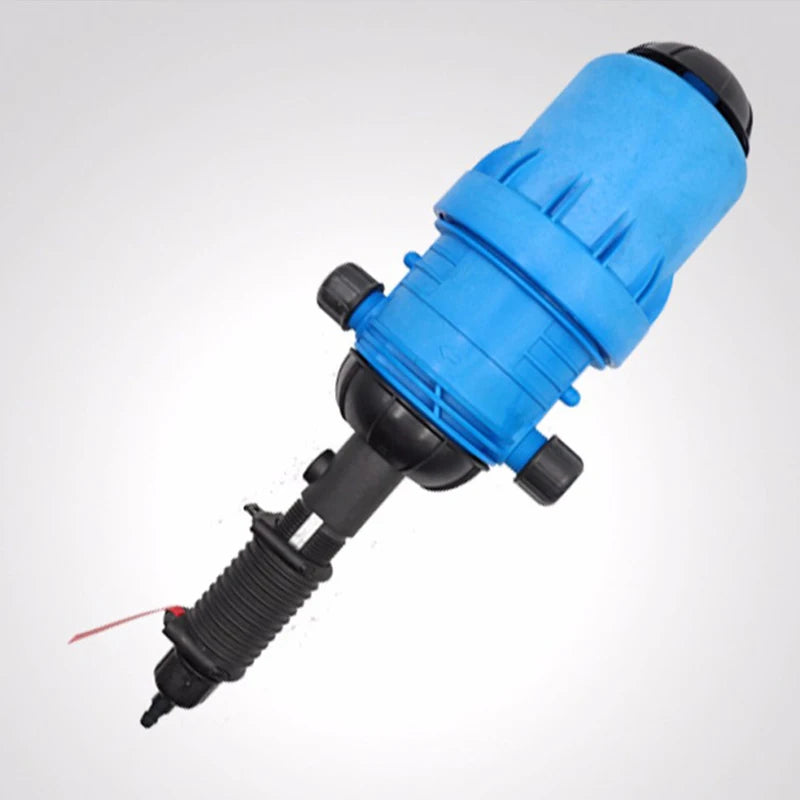

Mineral proportional dosing pump
Mineral proportional dosing pump
Couldn't load pickup availability
Model: P2505 (1%-5%)
Material: PVC
Proportion Range: 1%-5% (1:20-1:100)
Flow Range: 20L/H-2500L/H
Working Water Pressure: 0.2-6bar
Inlet And Outlet Diameter: 25mm/20mm
Continuous Work: >100 Days
Water Flow Temperature: 1-45 ° C (33.8 ° F-113 ° F)
Pipeline Pressure: 0.2-8 Pa (2.9-113.4 Pascal) (Water pressure loss can get 0.1 Pa at low flow and 1 Pa at high flow)
Water Loss: 0.2 Pa - 1.2 Pa
Inlet and Outlet Thread: G3/4in
Weight: Approx. 1853g / 65.4oz
Inlet and Outlet Diameter: Approx. 32mm / 1.3in, Approx. 25mm / 1.0in
Length: Approx. 47cm / 18.5in
Maximum Diameter: Approx. 13cm / 5.1in
Bottom Black Bar Length: Approx. 20cm / 7.9in
Model: P2502 (0.2%-2%)
Material: PVC
Proportion Range: 0.2%-2% (1:50-1:500)
Flow Range: 12L/H-3000L/H
Working Water Pressure: 0.2-6bar
Inlet And Outlet Diameter: 32mm/25mm
Continuous Work: >100 Days
Water Flow Temperature: 1-45 ° C (33.8 ° F-113 ° F)
Pipeline Pressure: 0.2-8 Pa (2.9-113.4 Pascal) (Water pressure loss can get 0.1 Pa at low flow and 1 Pa at high flow)
Water Loss: 0.2 Pa - 1.2 Pa
Inlet and Outlet Thread: G3/4in
Weight: Approx. 1853g / 65.4oz
Inlet and Outlet Diameter: Approx. 32mm / 1.3in, Approx. 25mm / 1.0in
Length: Approx. 47cm / 18.5in
Maximum Diameter: Approx. 13cm / 5.1in
Bottom Black Bar Length: Approx. 20cm / 7.9in
Model: Z3-2 (0.2%-2%)
Material: PVC
Proportion Range: 0.2%-2% (1:50-1:500)
Flow Range: 20L/H-2500L/H
Working Water Pressure: 0.2-3bar
Inlet And Outlet Diameter: 25mm/32mm
Continuous Work: >100 Days
Water Flow Temperature: 4-30 ° C (39 ° F - 104 ° F)
Pipeline Pressure: 0.2-6 Pa (2.9-85 Pascal) (Water pressure loss can get 0.1 Pa at low flow and 1 Pa at high flow)
Water Loss: 0.2 Pa - 1.2 Pa
Inlet and Outlet Thread: G3/4in
Weight: Approx. 1853g / 65.4oz
Inlet and Outlet Diameter: Approx. 32mm / 1.3in, Approx. 25mm / 1.0in
Length: Approx. 47cm / 18.5in
Maximum Diameter: Approx. 13cm / 5.1in
Bottom Black Bar Length: Approx. 20cm / 7.9in
Model: Z3-4 (0.4%-4%)
Material: PVC
Proportion Range: 0.4%-4% (1:25-1:250)
Flow Range: 20L/H-2500L/H
Working Water Pressure: 0.2-3bar
Inlet And Outlet Diameter: 32mm/25mm
Continuous Work: >100 Days
Water Flow Temperature: 4-30 ° C (39 ° F - 104 ° F)
Pipeline Pressure: 0.2-6 Pa (2.9-85 Pascal) (Water pressure loss can get 0.1 Pa at low flow and 1 Pa at high flow)
Water Loss: 0.2 Pa - 1.2 Pa
Inlet and Outlet Thread: G3/4in
Weight: Approx. 1853g / 65.4oz
Inlet and Outlet Diameter: Approx. 32mm / 1.3in, Approx. 25mm / 1.0in
Length: Approx. 47cm / 18.5in
Maximum Diameter: Approx. 13cm / 5.1in
Bottom Black Bar Length: Approx. 20cm / 7.9in
Animal husbandry, horticultural flowers, fertilizer and water irrigation, industrial hygiene, environmental protection and water treatment, vehicle cleaning, equipment maintenance, food processing, printing industry, and other fields that must be diluted.
Working principle :
Absorb the mixing ratio of the additives. The main body of the pump is combined by a piston rod connected to the water flow power. The piston rod equipped with a backflow stop rotates in a cylinder. When the water is pressed out, it will be installed at the bottom. The liquid additive in the container is evenly drawn into the water flow through the pipe.
